BFT Virgo Smart BT A20 Double Kit

$1,200.00 Inc. Tax

minus
plus
Download PDF

Optional solar kit available

  • Control unit: Thalia
  • Board power supply: 230 V
  • Motor voltage: 24 V
  • Power consumption: 110 W
  • Max. width of door/gate wing: 2 m
  • Max. weight of door/gate wing: 200 kg
  • Maximum angle: 120 °
  • Cycle time: 14 s
  • Type of limit switch: Electromechanical
  • Slowdown: Yes
  • Locking: Mechanical
  • Release: Personal key
  • Impact reaction: Electronic torque limiter
  • Frequency of use: Semi intensive
  • Protection rating: IP44
  • Environmental conditions: -20 ÷ 55 °C
  • U-Link: Yes

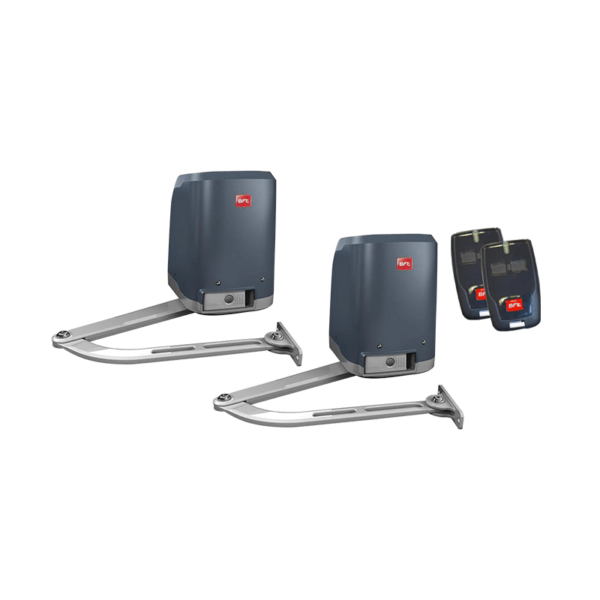

Complete kit 24 V for swing gates up to 200 kg in weight and 2 m in length. Kit includes:

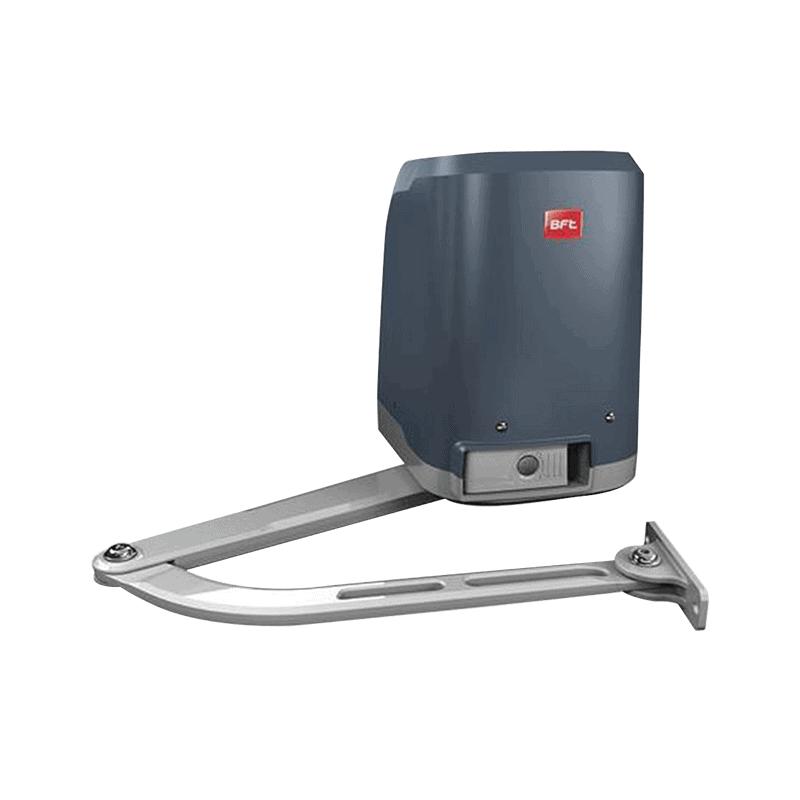

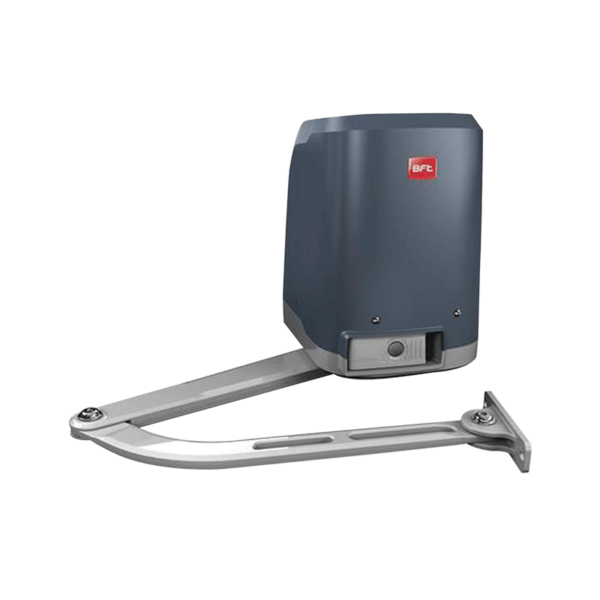

  • Virgo Smart BT A 20: Non-reversible 24 V electro-mechanical operator for swing gates weighing up to 200 kg and up to 2 m long, with integrated control unit.
  • Virgo Smart BT A 20 Slave: Irreversible electromechanical operator 24 V for swing gates weighing up to 200 kg and 2 m long.
  • Mitto B RCB04 R1: Transmitter with 4 channels. Range 50/100 m. Power supply 12 V with 1 battery type 23 A

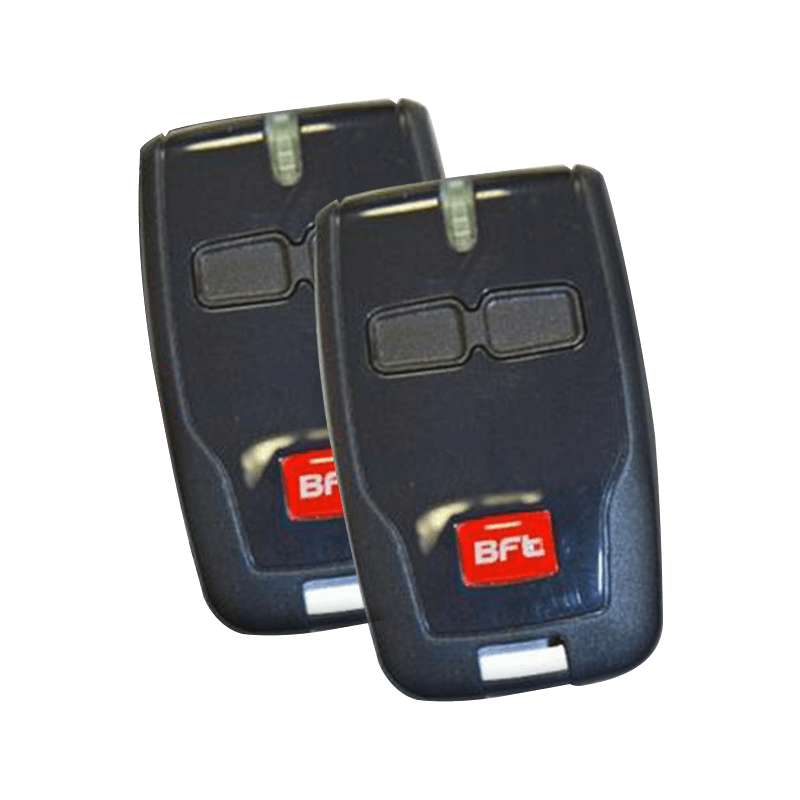

  • Mitto 2 12V: 12 V 2 channel transmitter 433 MHz rolling code
