BFT Kustos Ultra BT A25

$1,500.00 Inc. Tax

minus
plus
Download PDF

Optional solar kit available

  • Control unit: THALIA
  • Board power supply: 230 V
  • Motor voltage: 24 V
  • Power consumption: 40 W
  • Max. width of door/gate wing: 2.5 m
  • Max. weight of door/gate wing: 400 kg
  • Useful rod stroke: 250 mm
  • Maximum angle: 118 °
  • Cycle time: 13 s
  • Type of limit switch: Magnetic
  • Slowdown: Yes
  • Locking: Mechanical
  • Release: Personal key
  • Impact reaction: D-Track
  • Frequency of use: intensive
  • Protection rating: IP44
  • Environmental conditions: -20 ÷ 55 °C
  • U-Link: no

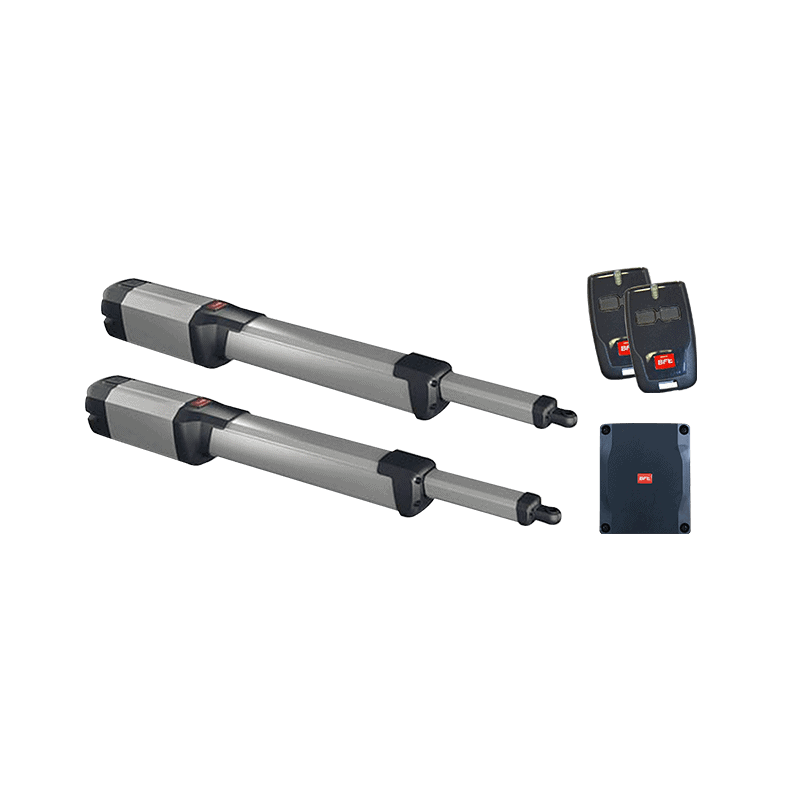

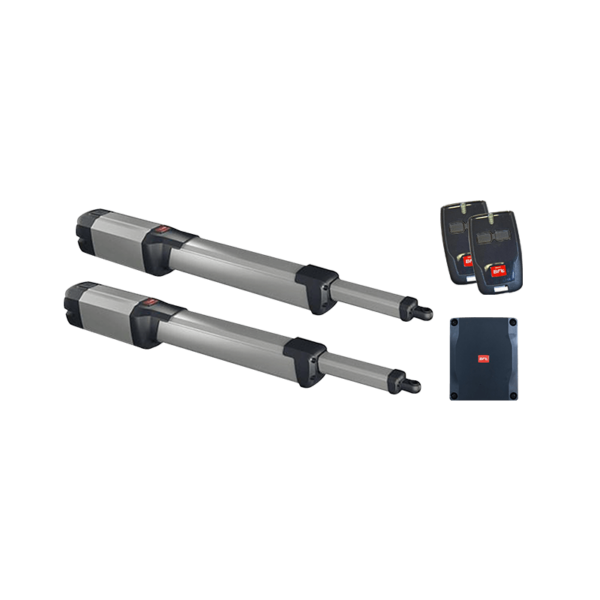

Irreversible electro-mechanical operator 24 V for swing gates up to 400 kg in weight and up to 2.5 m in length with covered worm screw. Integrated mechanical stops. Kit includes:

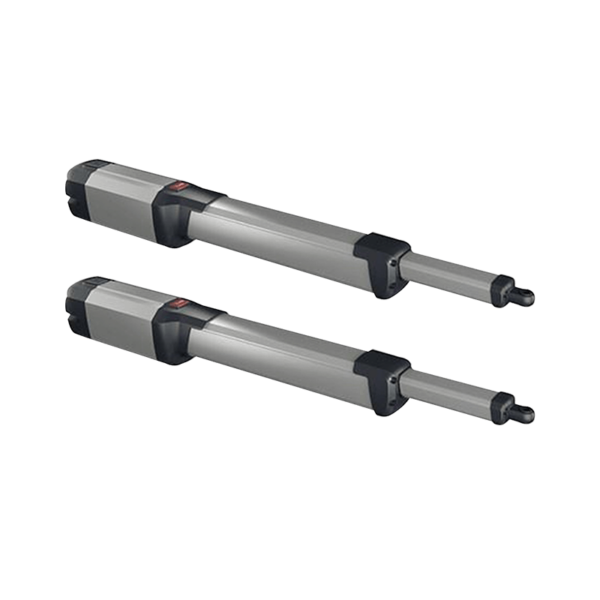

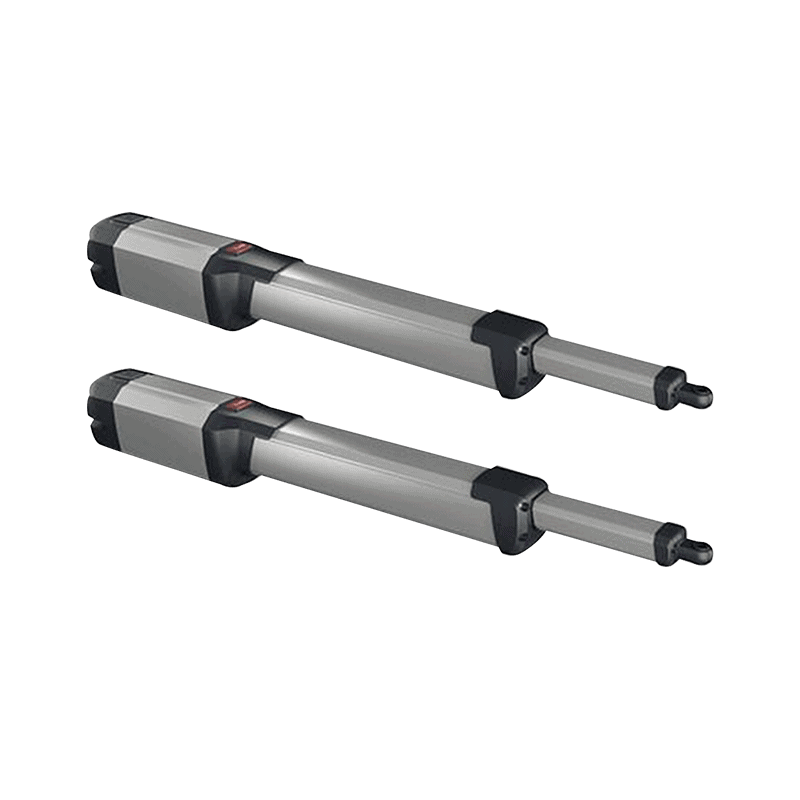

  • Kustos Ultra BT A25: Irreversible electro-mechanical operator 24 V for swing gates up to 400 kg in weight and up to 2.5 m in length with covered worm screw. Integrated mechanical stops.
  • Radius B LTA 24 R1: Flashing light with incorporated antenna for motors with power supply 24V
  • DESME A15: Pair of self-aligning photocells. Range 30 m. Power supply 24 V AC/DC

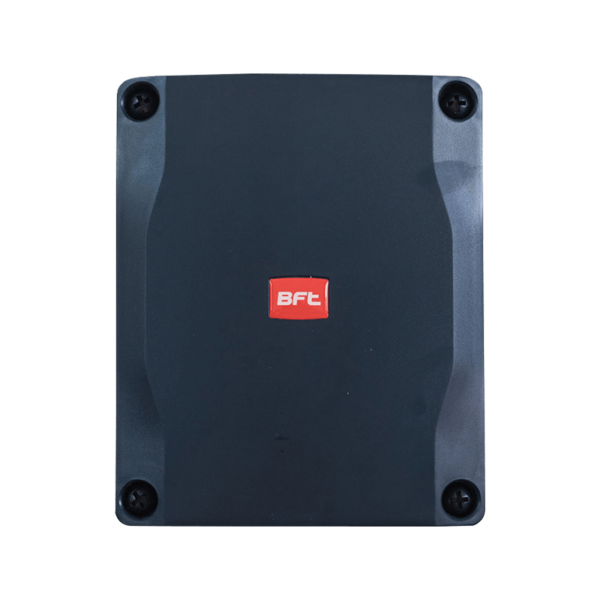

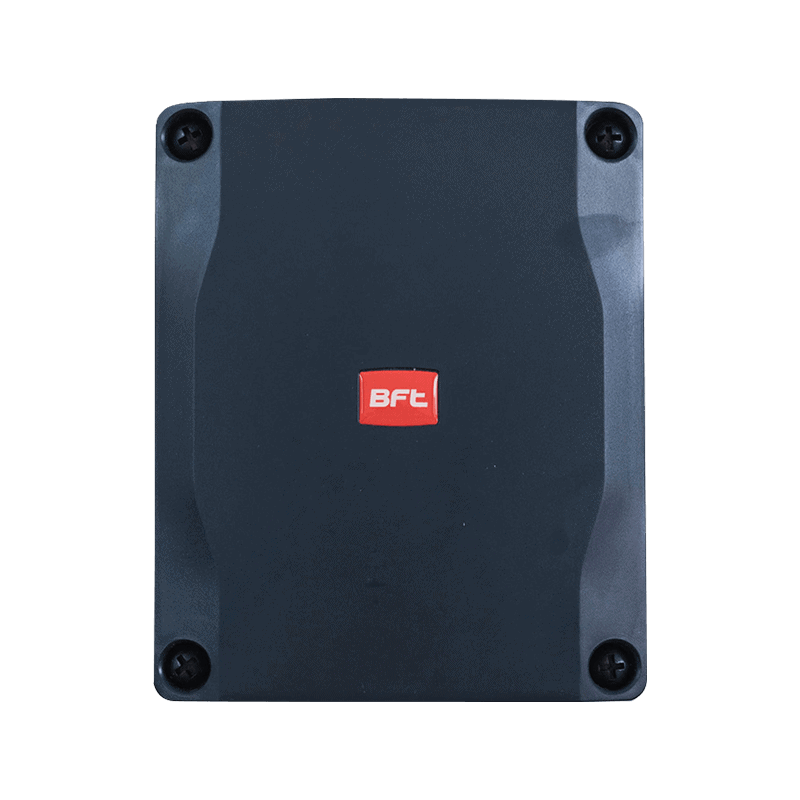

  • THALIA: Control panel with display for one or two 24V electromechanical operators for swing gates
  • 2 x Mitto 4 Button Remotes: Transmitter with 4 channels. Range 50/100 m. Power supply 12 V with 1 battery type 23 A
