BFT Deimos BT A600

$850.00 Inc. Tax

minus
plus
Download PDF

Optional solar kit available

  • Supply voltage: 230 V AC
  • Power input: 50 W
  • Max. door/gate weight: 600 kg
  • Gate speed: 12 m/min
  • Type of limit switch: Electromechanical
  • Pinion module: 4
  • Slowdown: Yes
  • Locking: Mechanical
  • Release: Lever-operated with personal key
  • Impact reaction: D-Track
  • Frequency of use: intensive
  • Protection rating: IP24
  • Environmental conditions: -20 ÷ 55 °C

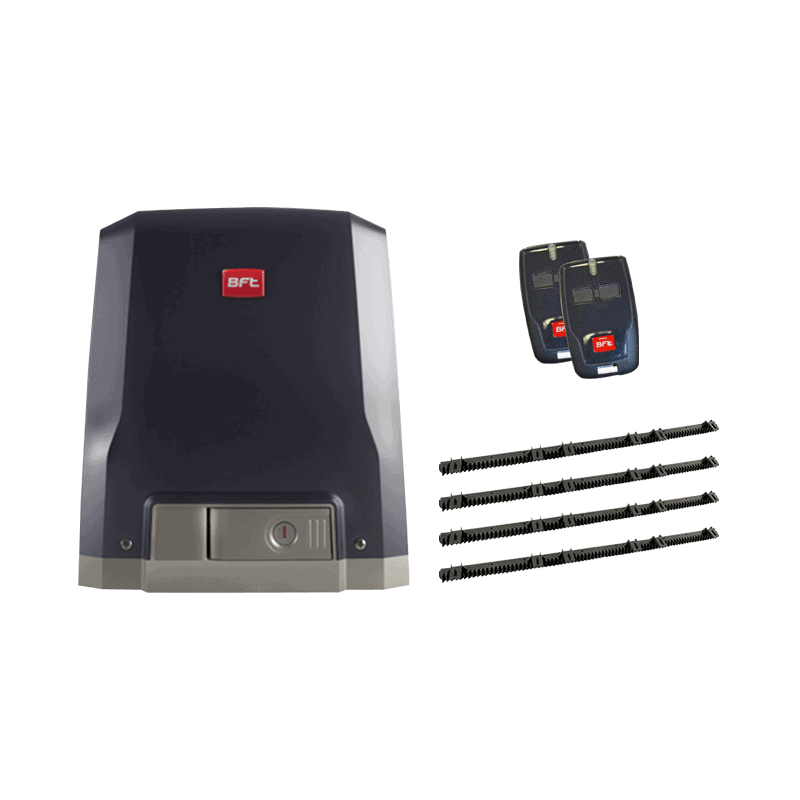

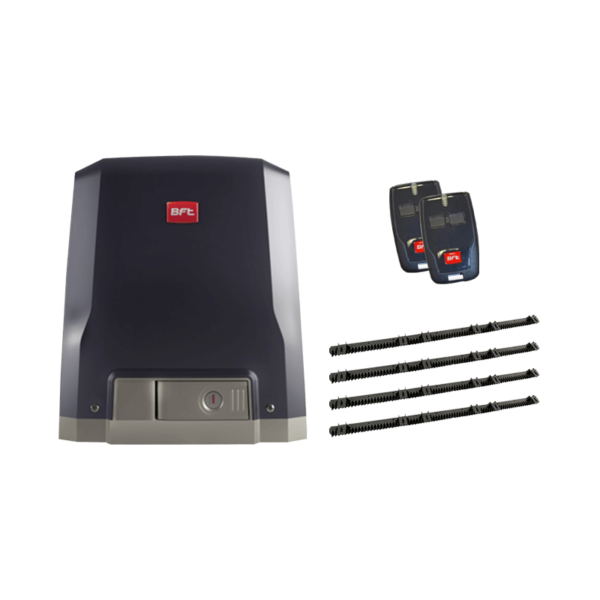

Complete kit 24 V for sliding gates weighing up to 600 kg. Leaf speed 12 m/min. Kit includes:

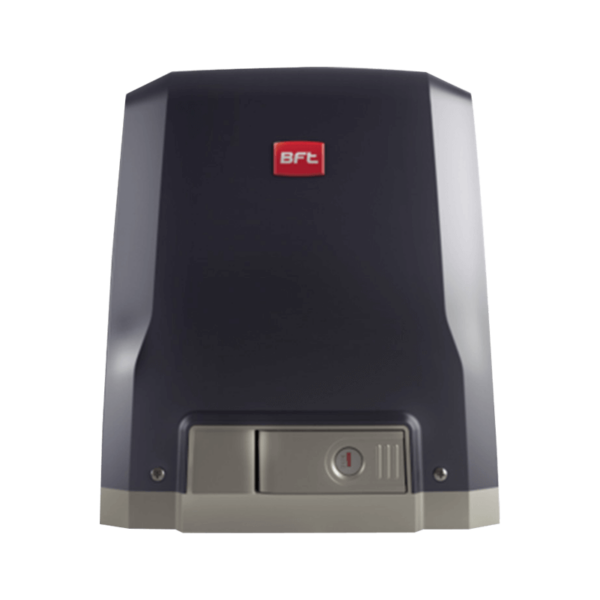

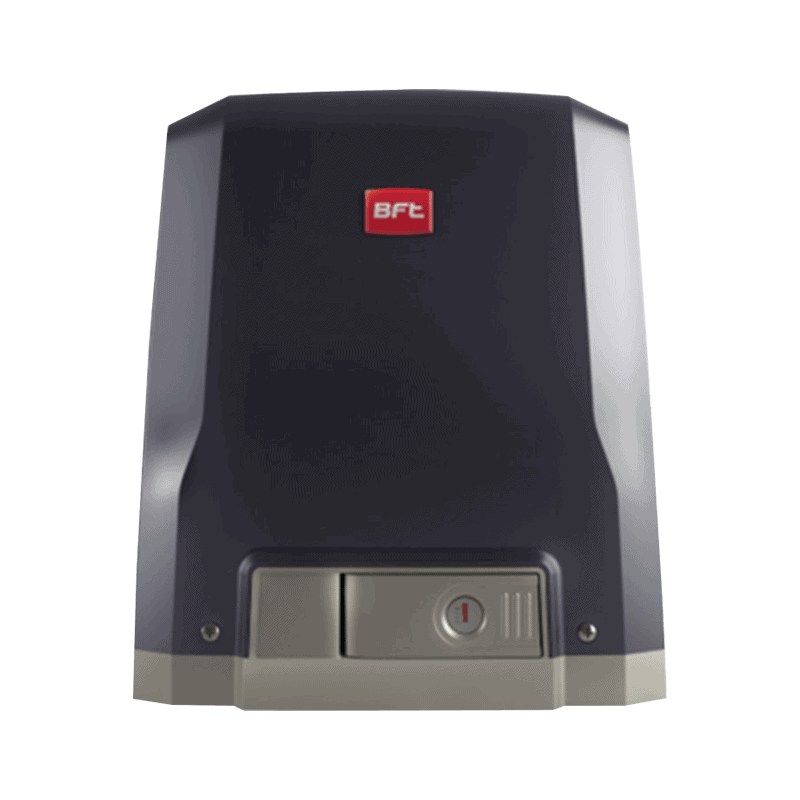

  • Deimos BT A600 Motor. Operator 24 V for sliding gates up to 600 kg in weight. Leaf speed 12 m/min.

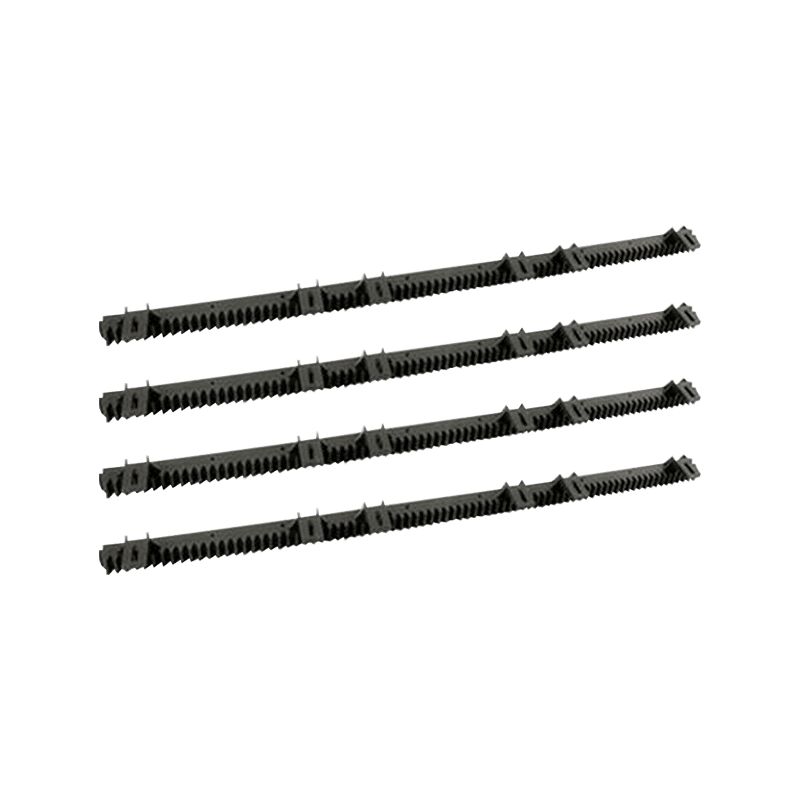

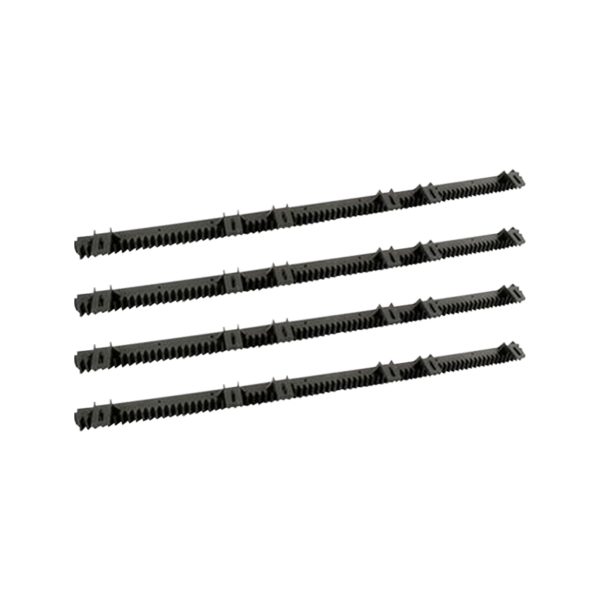

  • Plastic rack, 4-module, cross-section 22 x 22 mm, length 1 m, screw-fitted into slots Max. load capacity 600 kg.

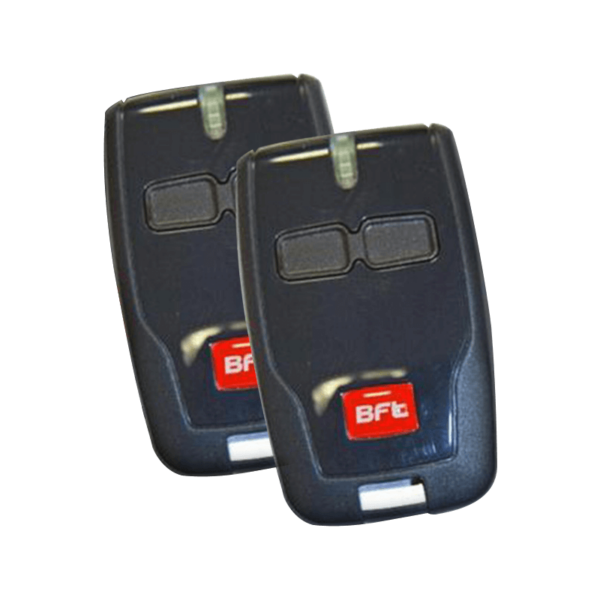

  • 2 x Mitto 2 Button Remotes: Transmitter with 2 channels. Range 50/100 m. Power supply 12 V with 1 battery type 23 A
